Skyward Stringing Pulley Alum or Nylon
| Unit Price: | 25 USD |
|---|---|
| Min. Order: | 10 Piece/Pieces |
| Packaging: | Plastic Bag or Paper Box |
|---|---|
| Productivity: | 200 Pieces/Day |
| Brand: | Qianyuan |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | China |
| Supply Ability: | 200 Pieces/Day |
| Certificate: | Test Certed By China National Institute |
| HS Code: | 8425190000 |
| Port: | Shanghai,Ningbo,Guangzhou |
Basic Info
Model No.: Skyward Paying Line
Product Description

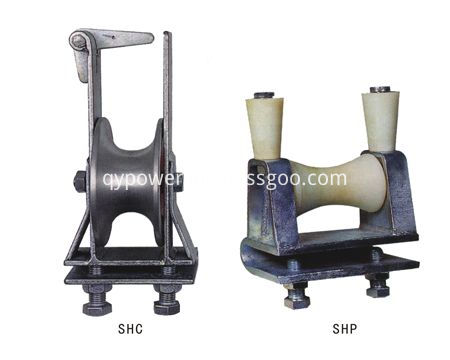

Skyward Stringing Pulley
Hook Model Dual-purpose Open Block Pulley,Cable Pulley,Stringing Pulley,Stringing Block,Cable Roller,Cable Block,Cable Pulley Roller,Conductor Block.Conductor Pulley
Used to stringing wire of small and middle sectional area on the pole arm. Not only used to be as hang model pulley but also as skyward model stringing pulley.
Detailed Product Description
1.sheave material--MC nylon or Aluminum
2.light and wear well
Characteristics
1)sheave: Nylon/ Al;
2)Material quality: stainless
3)Rated load: 0.5Ton,1Ton;2Ton
Technical Details:
| Product No. | Model | Outside ΦX width (mm) | Applicable Conductor ACSR (mm²) | Rated Load (KN) | Weight (KG) | Remark |
| 10125 | NL-5 | Φ80*50 | 25-185 | 5 | 1.5 | Aluminum |
| 10126 | NL-20 | Φ120*58 | 35-240 | 20 | 2.3 | |
| 10127 | Al-5 | Φ80*50 | 25-185 | 5 | 1.1 | Nylon |
| 10128 | Al-20 | Φ120*58 | 35-240 | 20 | 1.7 |
- 1
- 2
- 3
- 4
- 5
Yangzhou Qianyuan Electric Equipment Manufacturing & Trade Co. Ltd was established in 2017(former Yangzhou Xiyi Power., Ltd which is established in 2008), and is located in Yangzhou city, Jiangsu province. The company is specialized in manufacturing and trade of electric power line transmission tools. Our main products are Anti twist Wire Rope, Stringing Roller, Hydraulic Crimping Tools, Engine Powered Winch, Wire Grip, Gin Pole, Hydraulic Reel Jacks, Mesh Sock Grips, Cable Conveyor, Lever Chain Hoists and so on, which are mainly supplied to power companies, railroad companies and other industry fields.
Qianyuan always considers the viewpoints and demands of customers while we are developing new products. We have a very strict quality control system, for that our products have already been used by the whole country extensively. According to the actual application within the scope of local electric power system for several years, the electric power equipment of Qianyuan has been confirmed by high efficiency, convenient maintenance and good after-sale service. We really hope to develop friendships and do business with all friends for mutual benefit from all over the world to make an effort for both progresses in the fierce competitive world.
Our main products are as follows:
1. Anti Twist Wire Rope
2. Hydraulic Crimping Tools
3. Stringing Roller
4. Engine Powered Winch
5. Come Along Clamp
6. Cable Conveyor
- Company Name: Yangzhou Qianyuan Electric Equipment Manufacturing & Trade Co.Ltd
- Representative: Yu Song
- Product/Service: Anti Twist Wire Rope , Hydraulic Crimping Tools , Stringing Roller , Engine Powered Winch , Come Along Clamp , Gin Pole
- Capital (Million US $): 1000000RMB
- Year Established: 2017
- Total Annual Sales Volume (Million US $): US$1 Million - US$2.5 Million
- Export Percentage: 21% - 30%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 3
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 1,000-3,000 square meters
- Factory Location: Runyang Road No.6-620, Hangjiang District, Yangzhou, Jiangsu,China
- Contact Person: Mr. Frank Yu
- Tel: 86-0514-89271896
